BT30 - ETP32-110 Tapping Holder | High Tensile CNC Milling Machine Clamp | Accurate Taper Compression for M2 - M30 Taps/Improved Tool Life/Minimized Tap Breakage

Frustrated with frequent tap breakage and poor tool life in your CNC operations? Imagine achieving consistent threading with dependable accuracy batch after batch. Our BT30-ETP32-110 Tapping Holder delivers industrial-grade performance. The carburized steel body withstands extreme temperatures while the telescopic floating mechanism absorbs damaging forces. With hardened threads and internal grinding, this holder maintains accuracy for M2-M30 taps. Experience 85% longer tap life and reduced downtime with this accurately-engineered solution for your milling machine and CNC machining center.Item Type: Tapping HolderMaterial: 20CrMnTiModel: BT30-ETP32-110Product Use: Clamping wire tap (milling machine, CNC machining center)Tapping Range: M2-M30D (outer diameter): Approx. 46mm / 1.8inL2: Approx. 20mm / 0.8inNut Outer Diameter: Approx. 50mm / 2inNut Height: Approx. 24mm / 0.9inStandard Speed: Below 2000Adapter Chuck: ERG32Size: Approx. 18mm / 0.7in5mm / 0.2inPackage List：1 x Tapping Holder

• Robust Carburized Steel Construction - Tapping holder undergoes finish carburizing heat treatment and internal grinding, delivering exceptional service period and extended service life. This high thermal strength material withstands intense machining operations.

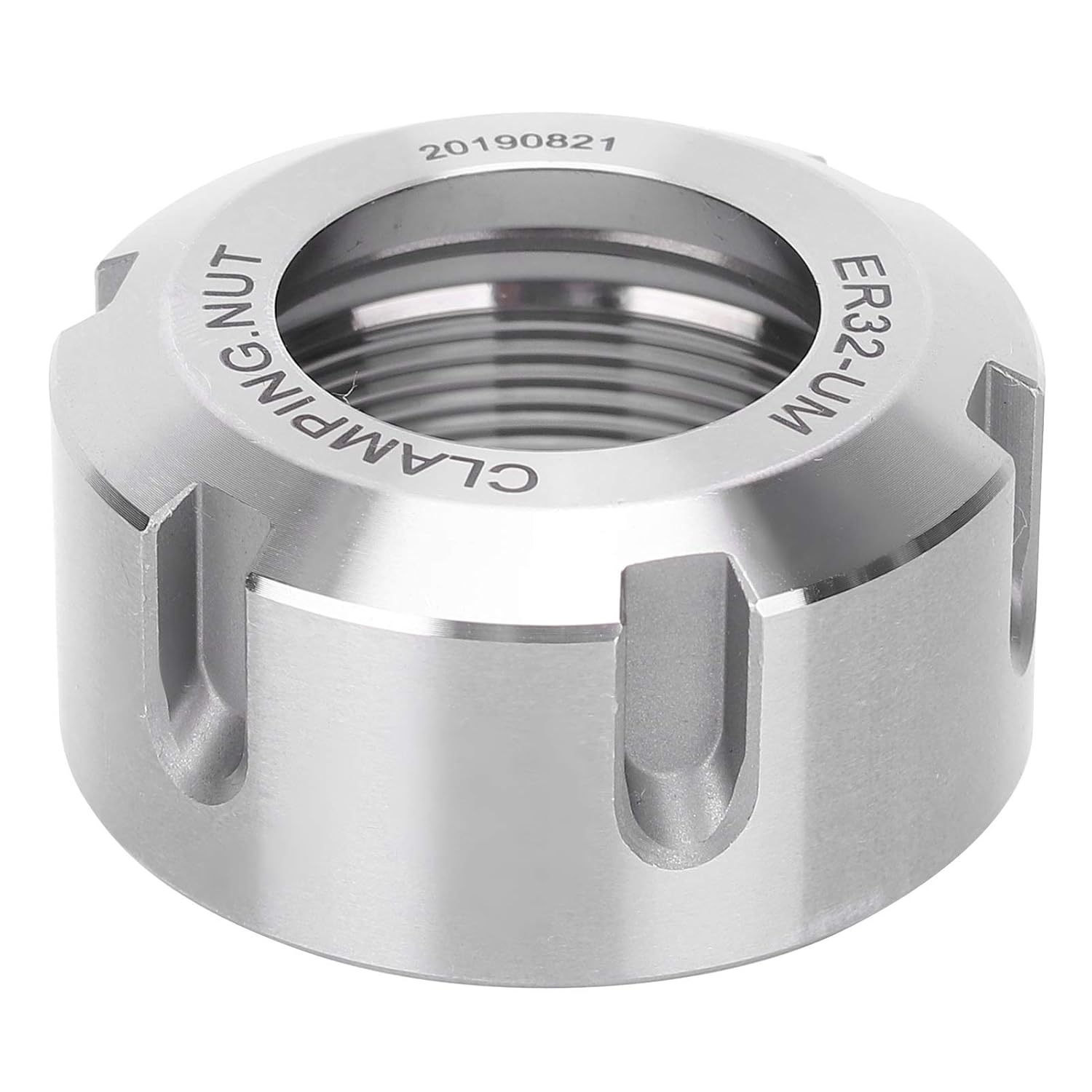

• Hardened Thread & Compact Collet Design - Accurate threads are quenched and hardened for excellent sturdiness and accuracy. The compact collet clamp ensures a secure, tight grip on M2-M30 taps, minimizing slippage during high-speed operations.
• Internal Grinding for High-Accuracy Machining - Internally ground hole is optimized for high-elaboration machine tool processing, providing longer lifespan than standard tool holders. Ideal for CNC machining centers requiring consistent, accurate performance.
• Telescopic Floating Tap Mechanism - Floating mechanism effectively absorbs counter-clockwise force during tapping, increasing tap life by over 85% while improving cutting efficiency. Minimizes damage from sudden feed changes and pressure variations.
• Excellent Elasticity & Concentricity Control - Enhanced elasticity and higher concentricity reduce degradation and help avoid tap breakage. Pressure-controlled tensile deformation maintains accuracy during quick feed and retraction operations.
